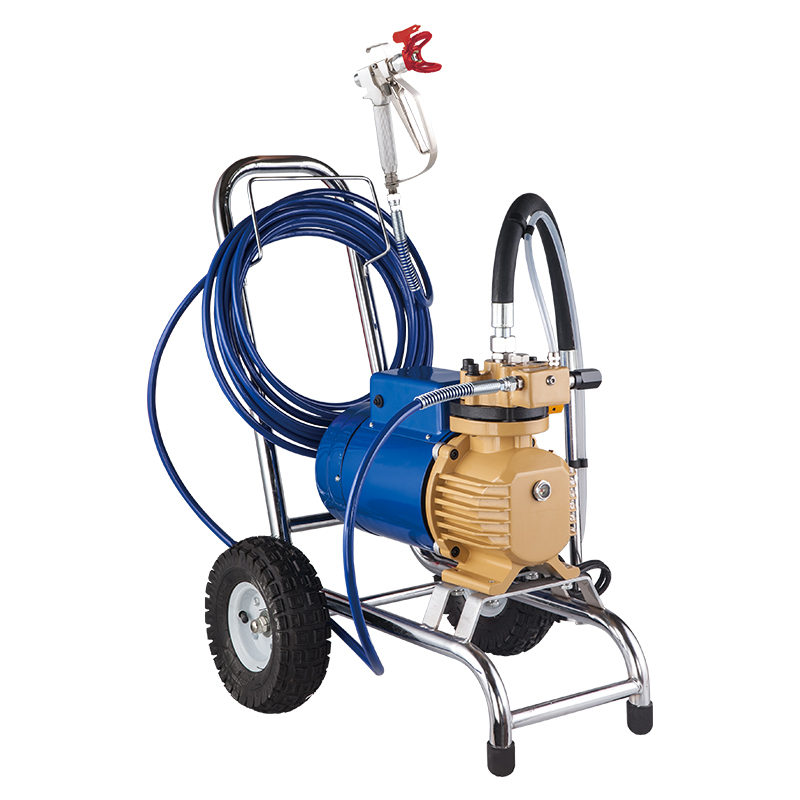

PRAM1-3020

AIRLESS PAINT SPRAYER

Features:

* Multiple utilize technology of air sprayer and airless sprayer to develop. Making the atomization and spraying to reach more uniform, more efficient . It can also supports two spray guns to work at the same time.

* The adopted “double rod” cylinder structure makes much steady working and performance. The complete elimination of the cylinder scoring, problem. Working life will be greatly extended. The new designed pump sealing gasket can realize the automatic compensation in its normal working life. Reducing maintenance time greatly.

* Surface of plunger pole adopt the technology of thermal sprayer ceramic “ceramic grinding”, compare with the traditional treatment of hard chromium plating and hard nitride, the working life is extended exponentially.

* Designed with ceramic valve plate and polymer material air valve, improving the sensitivity and reliability for direction. Reducing the compressed air consumption, low energy consumption. Compare with the same specification of local other similar product, the main parts with high and reliable quality.

Application:

Ideal for interior & exterior wall panting, ceiling painting, garden painting, construction painting, ship industry painting etc.

Applicable for latex paint, anti-rust paint, fireproof paint, and other coating etc.

Standard package:   Color box,  1pc/ctn

Ctn Size:    540×500×810 mm

G.W./N.W.:  31/30 kgs

20ft:             128 pcs

40HQ:          311 pcs

INQUIRY NOW  >

Technical data

model PRAM1-3020
Diameter ɸ100 mm
Pressure ratio 20:1
Single way displacement27 ml
Standard painting displacement3.0L (60 times/min)
Unload displacement 6.0 L/min
Working pressure 0.3-0.6 Mpa (3-6 bar)

Standard accessories

·  1pc- Spray gun.

·  1pc- 517 tip set.

·  1pc- High pressure hose.

·  1pc- Suction hose.

·  1pc- Plastic cup.

Supplemental editor

1. Stainless steel piston pump

2. Paint filter with durable filter inside to ensure clean paint liquid.


Oil lubricator and air filter to ensure lubrication for all sporting components and purification for working pressure.
